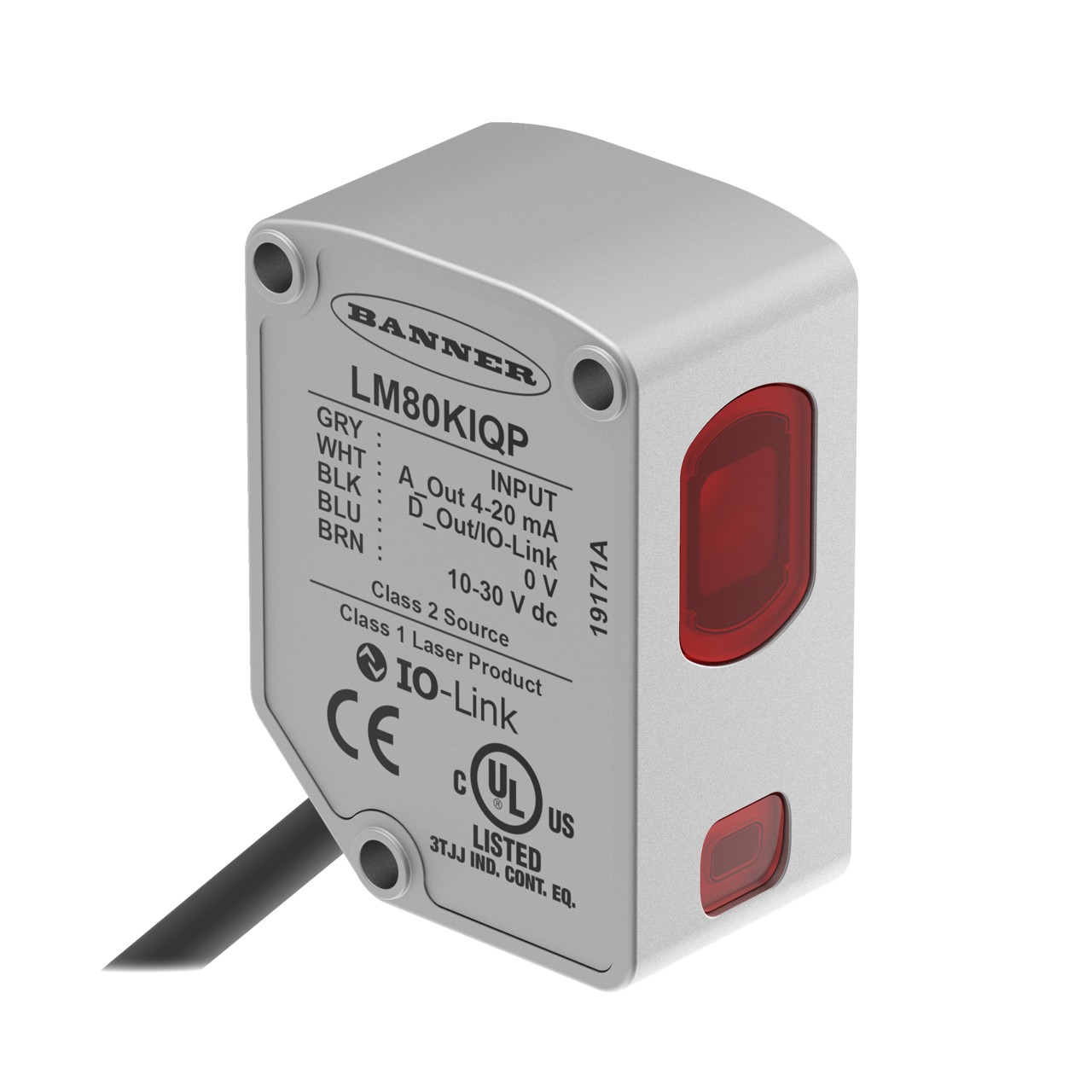

New LM Sensor for Even More Precise Applications
The LM Series of precision measurement sensors is now available in an even more precise model that features a 0.002 mm analog resolution at a range of 40-80 mm. The new LM80 model also features a smaller spot size (less than 1 mm at all measurement ranges) to detect even smaller features and take more measurements over the face of the target for even more precise profiling.
LM sensors provide reliable quality control and repeatably measure real-world targets with varying colors and reflectivity. In addition, LM sensors feature a thermally stable design that resists temperature changes, as well as enhanced mounting stability, for high accuracy in the toughest environments. The new LM80 has a temperature effect of +/-0.006 mm/°C. This is imperative for high precision applications since even a few degrees of temperature change can cause other sensors' measurement error to double.
With IO-1ink communication, users can remotely monitor sensor performance, easily identify and analyze trends in inspection results, and predict when maintenance is needed so that problems like a dirty lens can be resolved before sensor failure.
Featuring a fast 0.5 ms response speed and 0.25 ms sampling rate, LM sensors reliably solve high-speed applications with fast-moving targets.
LM sensors provide discrete, analog, and IO-1ink capabilities all in one device, which enables flexibility and reduces inventory requirements.
LM sensors can be programmed via IO-1ink or an optional Remote Sensor Display (RSD). The RSD remote display enables remote setup and monitoring, and it stores up to 6 configurations to facilitate product changeover and simplify device replacement. The RSD can remain in-line to easily monitor sensors in difficult-to-reach locations, or it can be removed after configuration.
